Toyota Yaris Hybrid Engine Diagram
A clear learner-driver guide to the Toyota Yaris Hybrid engine bay, including the main under-bonnet checks you may need for Show Me Tell Me practice.
Toyota Yaris Hybrid labelled for Show Me Tell Me
This Toyota Yaris Hybrid engine diagram is designed to help learner drivers quickly identify the main under-bonnet components they may be asked about during the driving test.
The third-generation Toyota Yaris Hybrid, known as the XP130, was introduced in 2012 and combines a 1.5-litre petrol engine with an electric motor. Use this guide to practise where everything lives before test day.
Know where the key checks are

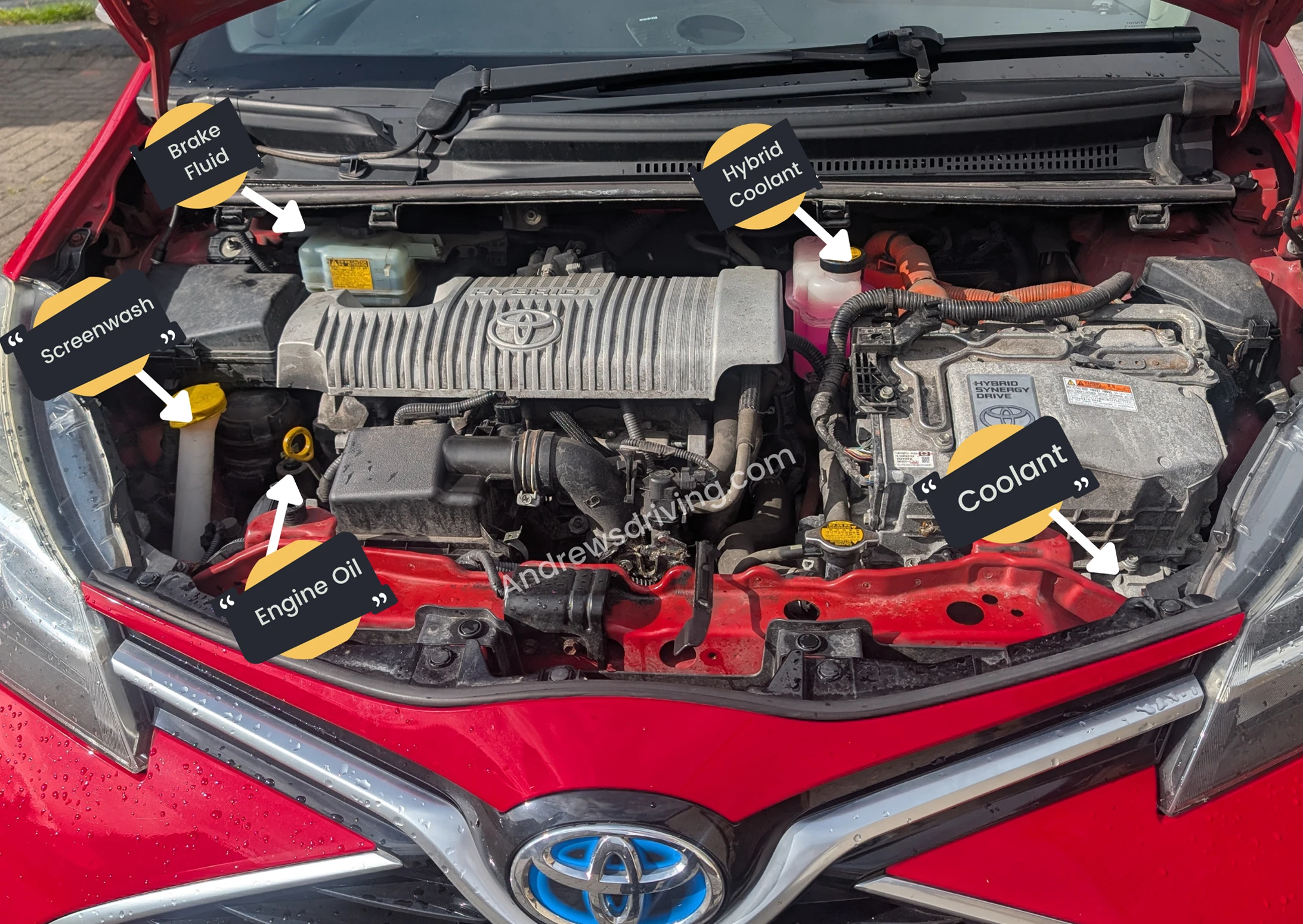

The labelled image below shows the main components you should be able to identify safely.
What each part does and how to check it

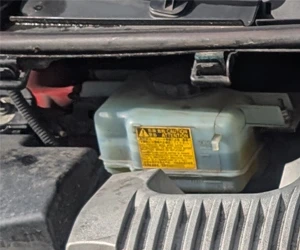

Brake fluid reservoir
Location: Usually towards the rear of the engine bay near the driver-side bulkhead.
How to check: Look at the side of the reservoir and make sure the fluid is between the MIN and MAX marks.

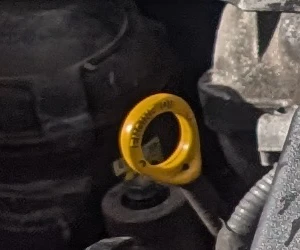

Engine oil dipstick and filler cap
Location: Find the dipstick handle and the oil filler cap on top of the engine.
How to check: Remove the dipstick, wipe it clean, reinsert it fully, then remove it again and check the level is between MIN and MAX.
Top-up: Use the correct oil grade listed in the owner’s handbook and avoid overfilling.
Screen wash reservoir
Location: Usually marked with a windscreen-washer symbol and often fitted with a coloured cap.
How to check: Open the cap and visually check whether the reservoir needs topping up.
Tip: Use a proper screen wash mixture, especially during winter.
Engine coolant tanks
Location: The Toyota Yaris Hybrid has two coolant tanks. One serves the petrol engine and the other serves the hybrid system.
How to check: Only check coolant when the engine is cold. The level should sit between the MIN and MAX marks.
Why this matters for your test
During the driving test, the examiner may ask you a Tell Me question before you drive or a Show Me question while driving. Knowing the Toyota Yaris Hybrid engine bay layout helps you answer calmly and safely.
Toyota Yaris Hybrid Engine Bay FAQs
Where is the engine oil dipstick on a Toyota Yaris Hybrid?
The engine oil dipstick is found under the bonnet and usually has a brightly coloured handle. Remove it, wipe it clean, reinsert it fully, then remove it again and check that the oil sits between the MIN and MAX marks.
What engine oil does a Toyota Yaris Hybrid use?
Use the correct engine oil grade listed in the Toyota Yaris Hybrid owner’s handbook. Add oil a little at a time and avoid overfilling.
How many coolant tanks does a Toyota Yaris Hybrid have?
The Toyota Yaris Hybrid has two coolant tanks. One is for the petrol engine cooling system and the other is for the hybrid system.
How do I check the coolant level on a Toyota Yaris Hybrid?
Only check the coolant when the engine is cold. The fluid should sit between the MIN and MAX marks on the relevant tank. Never remove a coolant cap while the engine is hot.
Where is the brake fluid reservoir on a Toyota Yaris Hybrid?
The brake fluid reservoir is usually towards the rear of the engine bay near the bulkhead. Check that the fluid level is between the MIN and MAX marks.
Where do I put screen wash in a Toyota Yaris Hybrid?
The screen wash reservoir is marked with a windscreen-washer symbol and often has a coloured cap. Open the cap and top it up using a proper screen wash mixture.
Do I need to know these checks for my driving test?
Yes. These checks can be part of the DVSA Show Me Tell Me vehicle safety questions.
