Ford Fiesta 1.0 EcoBoost Engine Diagram
A clear learner-driver guide to the Ford Fiesta 1.0 EcoBoost engine bay, including brake fluid, coolant, engine oil and screen wash checks.
Ford Fiesta EcoBoost labelled for Show Me Tell Me
This Ford Fiesta 1.0 EcoBoost engine diagram is designed to help learner drivers quickly identify the main under-bonnet components they may be asked about during the practical driving test.
Use the labelled image and component cards below to memorise the location of the brake fluid reservoir, engine coolant tank, oil dipstick and screen wash bottle.
Know where the key checks are

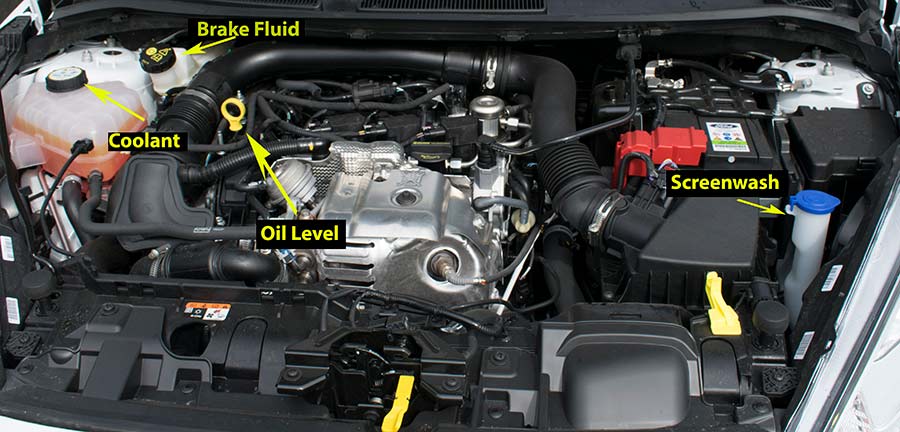

The labelled image below shows the main components you should be able to identify safely.
What each part does and how to check it
Brake fluid reservoir
Location: At the rear of the engine bay, identified by the cap with a yellow brake symbol.
How to check: Make sure the fluid sits between the MIN and MAX marks visible on the reservoir.

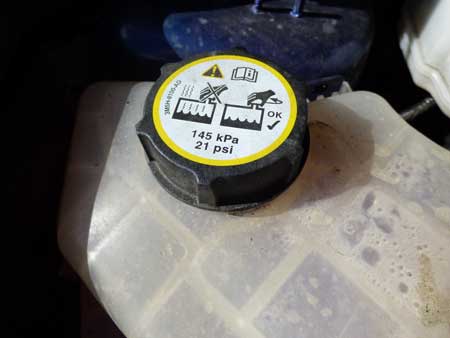

Engine coolant tank
Location: At the rear of the engine bay next to the brake fluid reservoir, with a black pressure cap.
How to check: Only check when the engine is cold. The coolant should be between the MIN and MAX marks.
Important: If the car regularly needs coolant, have it checked for a leak or another engine problem.
Engine oil dipstick
Location: Near the centre of the engine bay and identified by its yellow handle.
How to check: Remove the dipstick, wipe it clean, reinsert it fully, then remove it again and check the oil is between the two level marks.
Top-up: Use the correct grade of oil through the filler cap and avoid overfilling.
Screen wash bottle
Location: At the front of the engine bay, identified by the blue cap and windscreen-washer symbol.
How to check: There are no MIN or MAX marks. Open the cap and visually check whether the reservoir needs topping up.
Tip: Keep it topped up with suitable screen wash so you can maintain a clear view in all conditions.
Why this matters for your test
During the driving test, the examiner may ask you a Tell Me question before you drive or a Show Me question while driving. Knowing the Ford Fiesta EcoBoost engine bay layout helps you answer calmly and demonstrate safe vehicle knowledge.
Ford Fiesta EcoBoost Engine Bay FAQs
Where is the brake fluid reservoir on a Ford Fiesta EcoBoost?
The brake fluid reservoir is at the rear of the engine bay and is identified by the cap with a yellow brake symbol. Check that the fluid is between the MIN and MAX marks.
Where is the coolant tank on a Ford Fiesta EcoBoost?
The coolant expansion tank is at the rear of the engine bay next to the brake fluid reservoir. Only check it when the engine is cold.
Can I open the coolant cap when the engine is hot?
No. Hot coolant and pressurised steam can escape and cause serious burns. Wait until the engine has cooled fully.
Where is the oil dipstick on a Ford Fiesta EcoBoost?
The oil dipstick is near the centre of the engine bay and has a yellow handle. Check the oil is between the two level marks after wiping and reinserting the dipstick.
Where is the screen wash bottle on a Ford Fiesta EcoBoost?
The screen wash bottle is at the front of the engine bay and is identified by a blue cap with a windscreen-washer symbol.
Do I need to know these checks for my driving test?
Yes. These checks can be part of the DVSA Show Me Tell Me vehicle safety questions.
