Suzuki Swift 1.0 Boosterjet Hybrid Engine Diagram
A clear learner-driver guide to the key under-bonnet checks on the Suzuki Swift 1.0 Boosterjet Hybrid, including brake fluid, coolant, engine oil and screen wash.
Suzuki Swift 1.0 Boosterjet labelled for Show Me Tell Me
This Suzuki Swift 1.0 Boosterjet Hybrid engine diagram is designed to help learner drivers quickly identify the main under-bonnet components they may be asked about during the driving test.
The 1.0 Boosterjet engine produced 111 bhp and was used in the Suzuki Swift from 2017 to 2023. Use this guide to practise where everything lives before test day.
Know where the key checks are

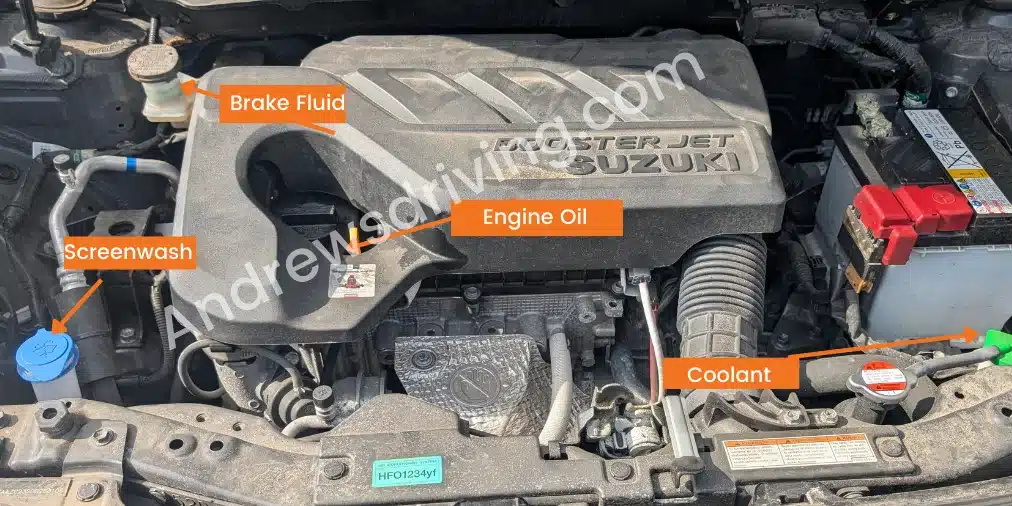

The labelled image below shows the main components you should be able to identify safely.
What each part does and how to check it
Brake fluid reservoir
Location: Towards the rear of the engine bay near the driver-side bulkhead.
How to check: Look at the side of the reservoir and make sure the fluid is between the MIN and MAX marks.
Engine oil dipstick and filler cap
Location: Find the dipstick handle and the oil filler cap on top of the engine.
How to check: Remove the dipstick, wipe it clean, reinsert it fully, then remove it again and check the level is between MIN and MAX.
Top-up: Use the correct oil grade listed in the owner’s handbook and avoid overfilling.
Screen wash reservoir
Location: Usually marked by a windscreen-washer symbol and often fitted with a blue cap.
How to check: Open the cap and visually check whether the reservoir needs topping up.
Tip: Use a proper screen wash mixture, especially during winter.
Engine coolant tank
Location: Look for the translucent coolant reservoir with level markings.
How to check: Only check the coolant when the engine is cold. The fluid should sit between the MIN and MAX marks.
Why this matters for your test
During the driving test, the examiner may ask you a Tell Me question before you drive or a Show Me question while driving. Knowing the Suzuki Swift 1.0 Boosterjet engine bay layout helps you answer calmly and safely.
Suzuki Swift 1.0 Boosterjet Engine Bay FAQs
Where is the engine oil dipstick on a Suzuki Swift 1.0 Boosterjet?
The engine oil dipstick is found under the bonnet and usually has a brightly coloured handle. Remove it, wipe it clean, reinsert it fully, then remove it again and check that the oil sits between the MIN and MAX marks.
What engine oil does a Suzuki Swift 1.0 Boosterjet use?
Use the correct engine oil grade listed in the Suzuki Swift owner’s handbook. Add oil a little at a time and avoid overfilling.
Where is the coolant tank on a Suzuki Swift 1.0 Boosterjet?
The coolant tank is the translucent reservoir under the bonnet with level markings on the side. Only check it when the engine is cold.
Can I open the coolant cap when the engine is hot?
No. Hot coolant and pressurised steam can escape and cause serious burns. Wait until the engine has cooled before checking or topping up.
Where is the brake fluid reservoir on a Suzuki Swift 1.0 Boosterjet?
The brake fluid reservoir is usually towards the rear of the engine bay near the driver-side bulkhead. Check that the fluid level is between the MIN and MAX marks.
Where do I put screen wash in a Suzuki Swift 1.0 Boosterjet?
The screen wash reservoir is marked with a windscreen-washer symbol and often has a blue cap. Open the cap and top it up using a proper screen wash mixture.
How much power does the Suzuki Swift 1.0 Boosterjet have?
The Suzuki Swift 1.0 Boosterjet engine produces 111 bhp.
What years was the Suzuki Swift 1.0 Boosterjet produced?
The Suzuki Swift 1.0 Boosterjet was produced from 2017 to 2023.
Do I need to know these checks for my driving test?
Yes. These checks can be part of the DVSA Show Me Tell Me vehicle safety questions.
