Ford Focus 1.5 TDCi Diesel Engine Diagram
A clear learner-driver guide to the Ford Focus 1.5 TDCi diesel engine bay, including brake fluid, coolant, engine oil and screen wash checks.
Ford Focus 1.5 TDCi labelled for Show Me Tell Me
This Ford Focus 1.5 TDCi diesel engine diagram is designed to help learner drivers quickly identify the main under-bonnet components they may be asked about during the practical driving test.
Use the labelled image and component cards below to learn the location of the brake fluid reservoir, engine coolant tank, oil dipstick and screen wash bottle before test day.
Know where the key checks are

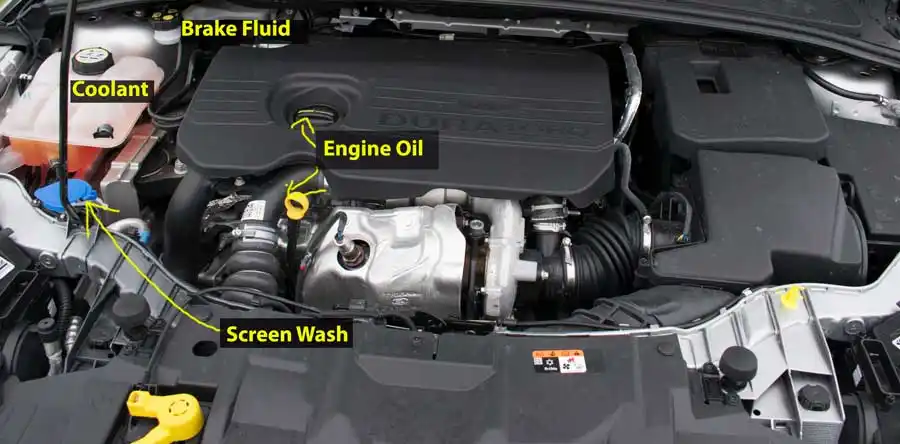

The labelled image below shows the main components you should be able to identify safely.
What each part does and how to check it

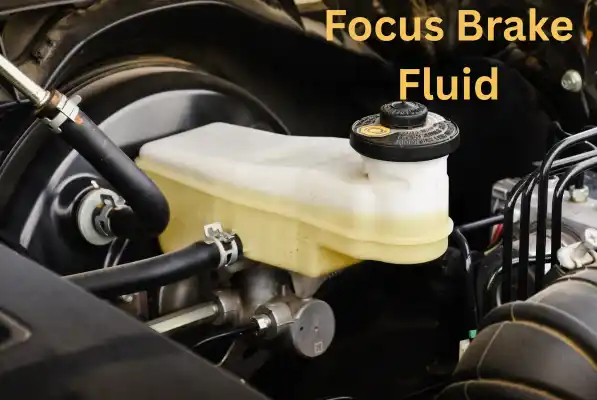

Brake fluid reservoir
Location: At the rear of the engine bay on the driver’s side, with a yellow brake symbol on the cap.
How to check: Make sure the fluid sits between the MIN and MAX marks visible on the reservoir.
Safety note: Low brake fluid can indicate a leak or brake wear, so have it checked if it needs topping up frequently.

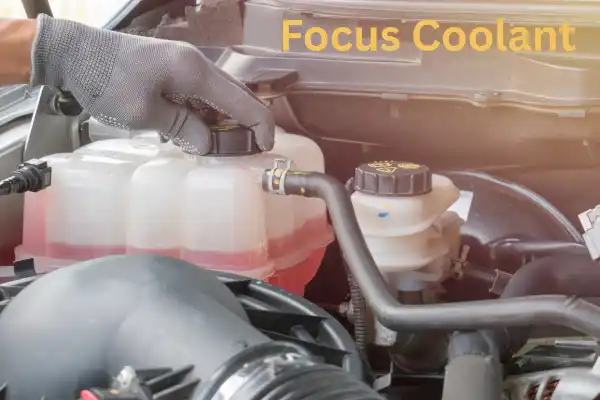

Engine coolant tank
Location: Just in front of the brake fluid reservoir. It is the largest bottle in the engine bay and normally has a black cap.
How to check: Only check the coolant when the engine is cold. The level should sit between the MIN and MAX marks.
Important: If the car frequently needs coolant, it may indicate a leak or another engine problem.
Engine oil dipstick
Location: Near the centre of the engine bay and identified by its yellow handle.
How to check: Remove the dipstick, wipe it clean, reinsert it fully, then remove it again and check that the oil sits between the two notches.
Top-up: Add the correct oil grade through the filler cap next to the dipstick and avoid overfilling.

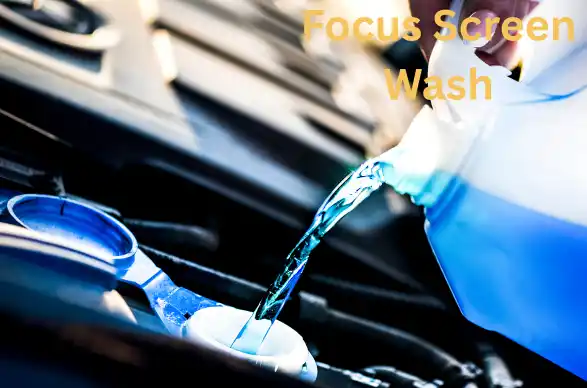

Screen wash reservoir
Location: At the front of the engine bay.
How to check: Open the cap and visually check the level. There are usually no MIN or MAX marks.
Tip: Keep the reservoir topped up with suitable screen wash so you can maintain a clear view in all weather.
Why this matters for your test
During the driving test, the examiner may ask you a Tell Me question before you drive or a Show Me question while driving. Knowing the Ford Focus 1.5 TDCi engine bay layout helps you answer calmly and demonstrate safe vehicle knowledge.
Ford Focus 1.5 TDCi Engine Bay FAQs
Where is the brake fluid reservoir on a Ford Focus 1.5 TDCi?
The brake fluid reservoir is at the rear of the engine bay on the driver’s side and has a yellow brake symbol on the cap. Check that the fluid is between the MIN and MAX marks.
Where is the coolant tank on a Ford Focus 1.5 TDCi?
The coolant tank is just in front of the brake fluid reservoir and is the largest bottle in the engine bay. Only check it when the engine is cold.
Can I open the coolant cap when the engine is hot?
No. Hot coolant and pressurised steam can escape and cause serious burns. Wait until the engine has cooled fully.
Where is the oil dipstick on a Ford Focus 1.5 TDCi?
The oil dipstick is near the centre of the engine bay and has a yellow handle. Check the oil is between the two notches after wiping and reinserting the dipstick.
Where is the screen wash reservoir on a Ford Focus 1.5 TDCi?
The screen wash reservoir is at the front of the engine bay. Open the cap and visually check whether it needs topping up.
Do I need to know these checks for my driving test?
Yes. These checks can be part of the DVSA Show Me Tell Me vehicle safety questions.
